Offset Pin Tumbler Mail Box Lock/Pin Lock/Cam Lock

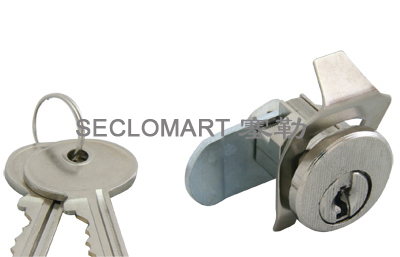

Offset Pin Tumbler Mail Box Lock

Item Cam item   Fits
KFCL0006 29.30. 28. 34. 404 ccw American Device
Auth-Florence
Bommer
Miami-Carey
KFCL0007 404 ccw Bommer  Mailboxes Manufactured After 1980
KFCL0008 29 ccw American Device
Security(vertical)
KFCL0009 30 cw Auth-Florence
Florence
KFCL0010 133 ccw Cutler
KFCL0011 37 ccw Jense
KFCL0012 26 ccw Bommer  Mailboxes Manufactured Before 1980
KFCL0013 31 cw S.H. Couch
KFCL0014 27 ccw Bommer  Mailboxes Manufactured Before 1980
KFCL0015 28 ccw Auth
KFCL0016 36 cw Dura-Steel
KFCL0017 38 ccw Bommer(Hook Style)



Zinc Alloy Die Casting housing and cylinder, Brass Key.
HL1 keyway, counter clockwise /clockwise  rotation to open
5 pin tumbler lock (nickel Plated)
Die cast cylinder with Plated face
Brass pins
Plated steel cams
Spring steel locking clip
Locked position  LEFT/UP/DOWN,90 degrees  to open
Includes 2 keys
Cam locking nut
KEYING- Available keyed differently
Key removable in locked position
