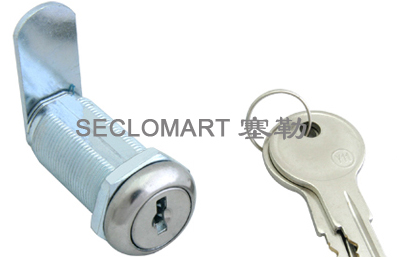

HOME > Products Show > Disc Lock/ Drawer Lock > Disc Lock-KFCL0036
Disc Lock / Drawer Lock / Cam Lock

KFCL0036/KFCL0090 Rotation Ccw
Cam One offset two straight
Plate Zinc
Key way Yale y11
Cap Stainless steel
Size 7/16"  5/8"  7/8"  1-1/8"  1-3/8"
Remarks 1.KA  OR KD
2.90° OR 180°


Zinc Alloy Die Casting housing and cylinder, Brass Key.
5 disc tumbler lock (Zinc Plate)
Die cast cylinder with Plated face
Brass disc
Plated steel cams
Spring steel
90 or 180 degrees  to open
Includes 2 keys
KEYING- Available keyed differently  or keyed alike
Requires 3/4"hole
Includes straaght&offset cams
Installs with clip
Plated diecast housing and steel cams can be mounted to metal or wood door/drawer from 1/2"to 1`thick
Keyed locking for maximum security
